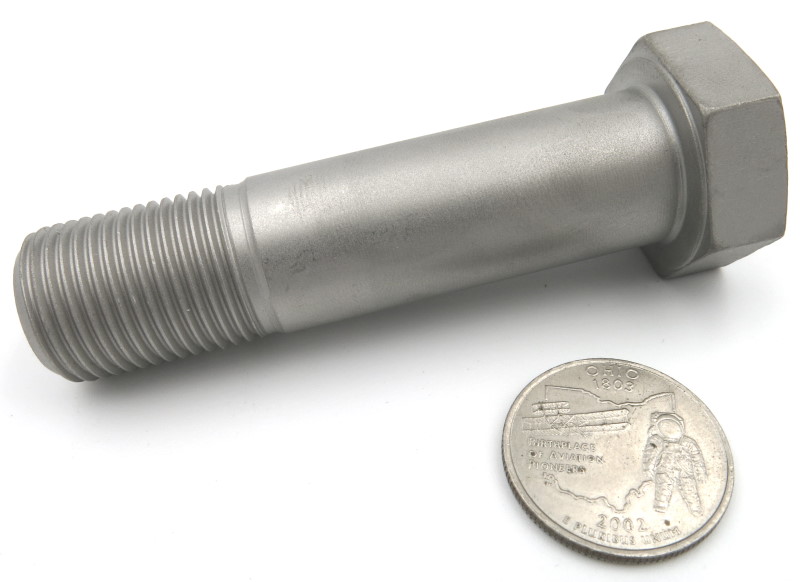

NAS6712U30 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6712U30 |
| Stock |
0 |
| Packaged Amount |
INQUIRE |

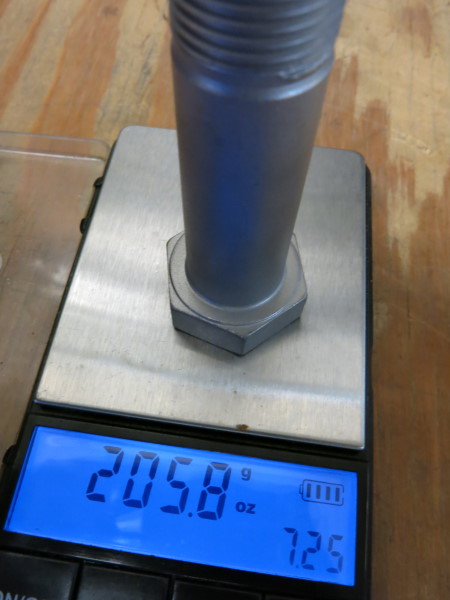

| REF PC Weight (LB) |
0.45 |
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.065
MIN. FLATS WIDTH (HEAD)
1.052
MIN. POINTS WIDTH (HEAD)
1.191
MAX. HEAD THICKNESS
0.390
MIN. HEAD THICKNESS
0.375
MIN. WASHER FACE DIAMETER
1.023
MAX. BODY DIAMETER
0.7490
MIN. BODY DIAMETER
0.7485
NOMINAL GRIP LENGTH
1.875
NOMINAL TOTAL LENGTH
2.916
MAX. MAJOR DIAMETER (THREADS)
0.743
MIN. MAJOR DIAMETER (THREADS)
0.737
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
PASSIVATED PER AMS2700, METHOD 1, TYPE 2 OR TYPE 8, CLASS 4
THREAD SPECS
.7500-16 UNJF-3A
