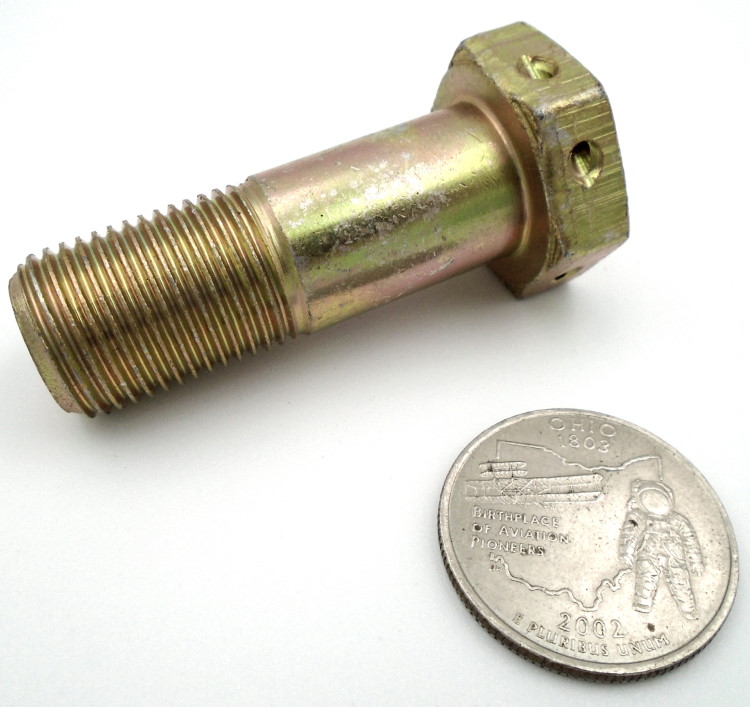

NAS6610H14 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6610H14 |
| Stock |
22 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

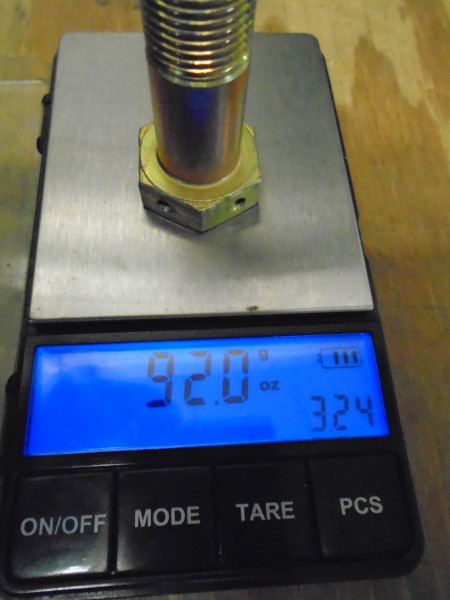

| REF PC Weight (LB) |
0.20 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.940
MIN. FLATS WIDTH (HEAD)
0.928
MIN. POINTS WIDTH (HEAD)
1.050
MAX. HEAD THICKNESS
0.327
MIN. HEAD THICKNESS
0.312
MIN. WASHER FACE DIAMETER
0.898
MAX. BODY DIAMETER
0.6240
MIN. BODY DIAMETER
0.6230
NOMINAL GRIP LENGTH
0.875
NOMINAL TOTAL LENGTH
1.777
MAX. MAJOR DIAMETER (THREADS)
0.618
MIN. MAJOR DIAMETER (THREADS)
0.612
MAX. HOLE DIAMETER (HEAD)
0.080
MIN. HOLE DIAMETER (HEAD)
0.070
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.6250-18 UNJF-3A
LOCKING MECHANISM
Drilled Heads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
