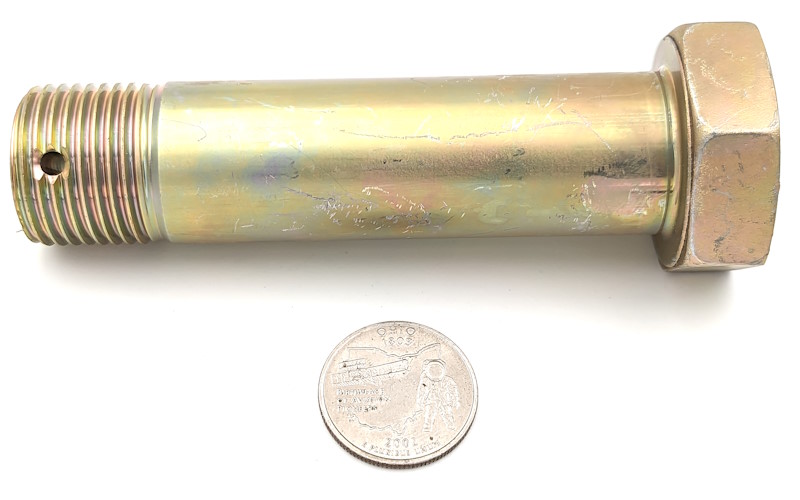

NAS6316-48D | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6316-48D |
| Stock |
177 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

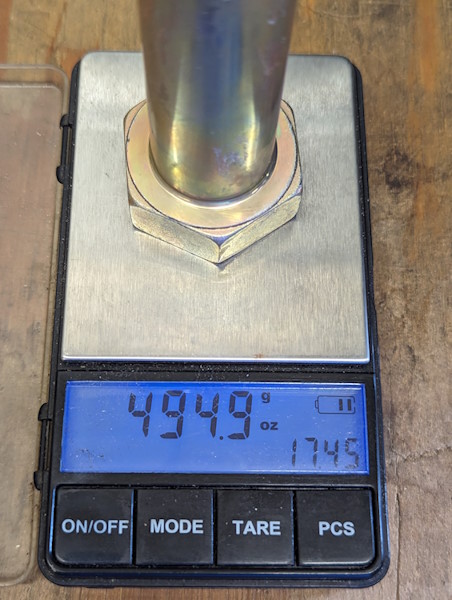

| REF PC Weight (LB) |
1.09 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.440
MIN. FLATS WIDTH (HEAD)
1.427
MIN. POINTS WIDTH (HEAD)
1.619
MAX. HEAD THICKNESS
0.515
MIN. HEAD THICKNESS
0.500
MIN. WASHER FACE DIAMETER
1.398
MAX. BODY DIAMETER
0.9990
MIN. BODY DIAMETER
0.9980
NOMINAL GRIP LENGTH
3.000
NOMINAL TOTAL LENGTH
3.895
MAX. MAJOR DIAMETER (THREADS)
0.9930
MIN. MAJOR DIAMETER (THREADS)
0.9860
NOMINAL HOLE DIAMETER (SHANK)
0.146
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
1.0000-12 UNJF-3A
LOCKING MECHANISM
Drilled Threads
