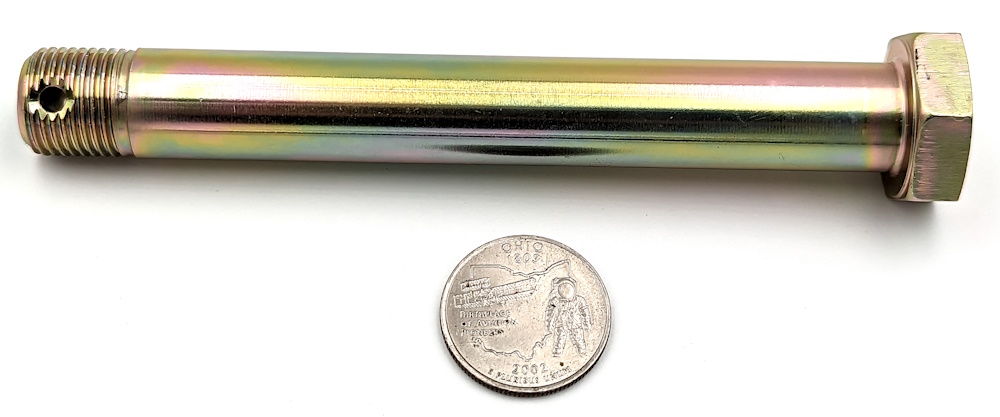

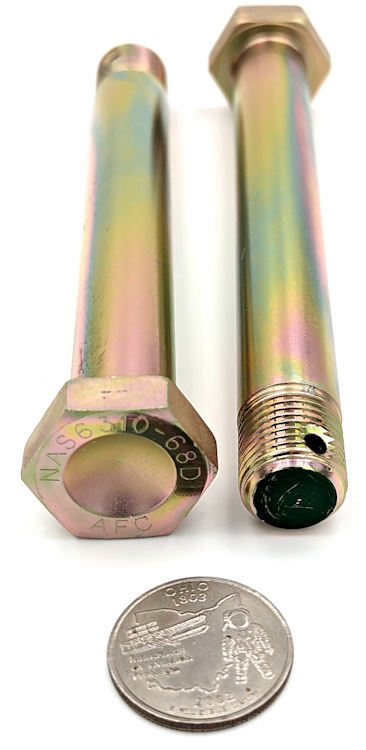

NAS6310-68D | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6310-68D |
| Stock |
0 |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.48 |
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.940
MIN. FLATS WIDTH (HEAD)
0.928
MIN. POINTS WIDTH (HEAD)
1.050
MAX. HEAD THICKNESS
0.327
MIN. HEAD THICKNESS
0.312
MIN. WASHER FACE DIAMETER
0.898
MAX. BODY DIAMETER
0.6240
MIN. BODY DIAMETER
0.6230
NOMINAL GRIP LENGTH
4.250
NOMINAL TOTAL LENGTH
4.876
MAX. MAJOR DIAMETER (THREADS)
0.6180
MIN. MAJOR DIAMETER (THREADS)
0.6120
NOMINAL HOLE DIAMETER (SHANK)
0.146
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
.6250-18 UNJF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
