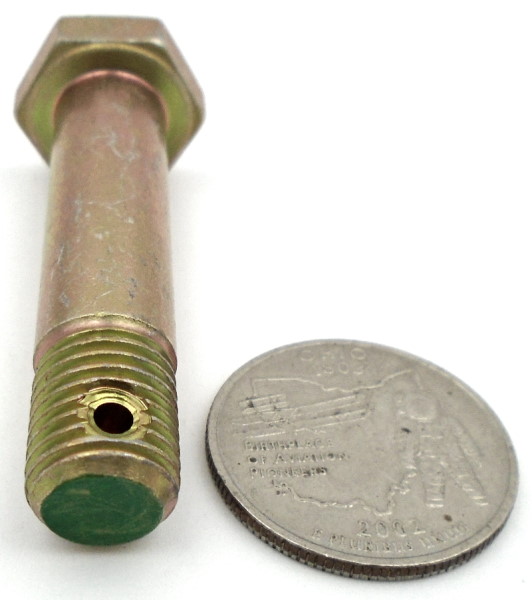

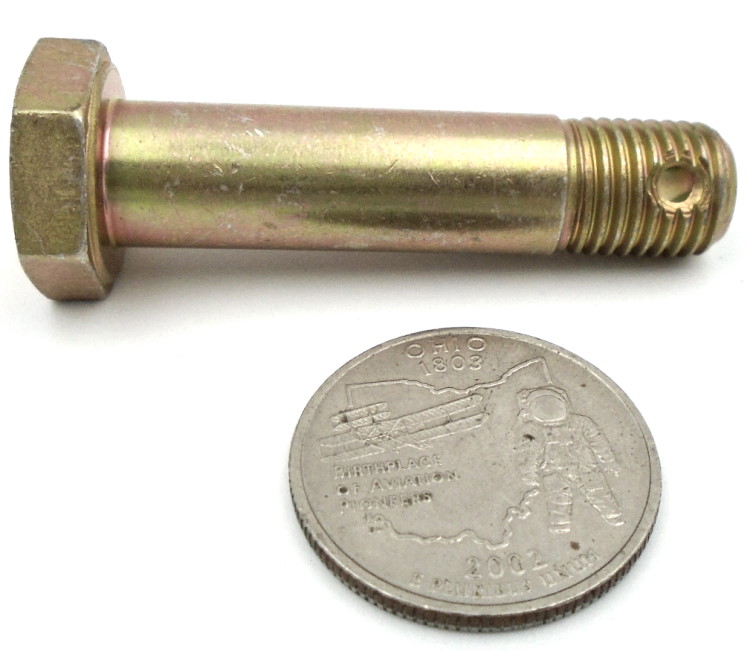

NAS6307-21D | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6307-21D |
| Stock |
349 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.098 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.690
MIN. FLATS WIDTH (HEAD)
0.678
MIN. POINTS WIDTH (HEAD)
0.764
MAX. HEAD THICKNESS
0.234
MIN. HEAD THICKNESS
0.219
MIN. WASHER FACE DIAMETER
0.648
MAX. BODY DIAMETER
0.4370
MIN. BODY DIAMETER
0.4360
NOMINAL GRIP LENGTH
1.312
NOMINAL TOTAL LENGTH
1.840
MAX. MAJOR DIAMETER (THREADS)
0.4310
MIN. MAJOR DIAMETER (THREADS)
0.4260
NOMINAL HOLE DIAMETER (SHANK)
0.111
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
.4375-20 UNJF-3A
LOCKING MECHANISM
Drilled Threads
