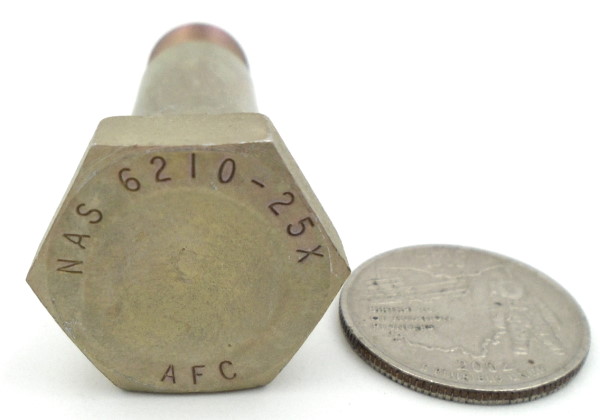

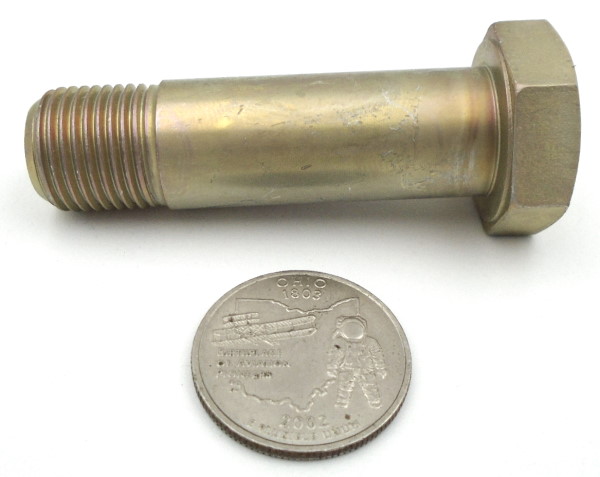

NAS6210-25X | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6210-25X |
| Stock |
64 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.25 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.940
MIN. FLATS WIDTH (HEAD)
0.928
MIN. POINTS WIDTH (HEAD)
1.050
MAX. HEAD THICKNESS
0.327
MIN. HEAD THICKNESS
0.312
MIN. WASHER FACE DIAMETER
0.898
MAX. BODY DIAMETER
0.6396
MIN. BODY DIAMETER
0.6386
NOMINAL GRIP LENGTH
1.562
NOMINAL TOTAL LENGTH
2.188
MAX. MAJOR DIAMETER (THREADS)
0.6180
MIN. MAJOR DIAMETER (THREADS)
0.6120
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.6250-18 UNJF-3A
