NAS464P5LA34 | SHEAR BOLT

INVENTORY
Part Number NAS464P5LA34
Stock 203
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.062
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.490
MAX. HEAD THICKNESS
0.172
MIN. HEAD THICKNESS
0.140
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3117
MIN. BODY DIAMETER
0.3108
NOMINAL GRIP LENGTH
2.125
MAX. GRIP LENGTH
2.141
MIN. GRIP LENGTH
2.109
NOMINAL TOTAL LENGTH
2.531
MAX. TOTAL LENGTH
2.562
MIN. TOTAL LENGTH
2.515
MAX. SHANK LENGTH
0.453
MIN. SHANK LENGTH
0.375
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE ENTIRE BOLT PER QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.3125-24 UNJF-3A
LOCKING MECHANISM
N/A
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.

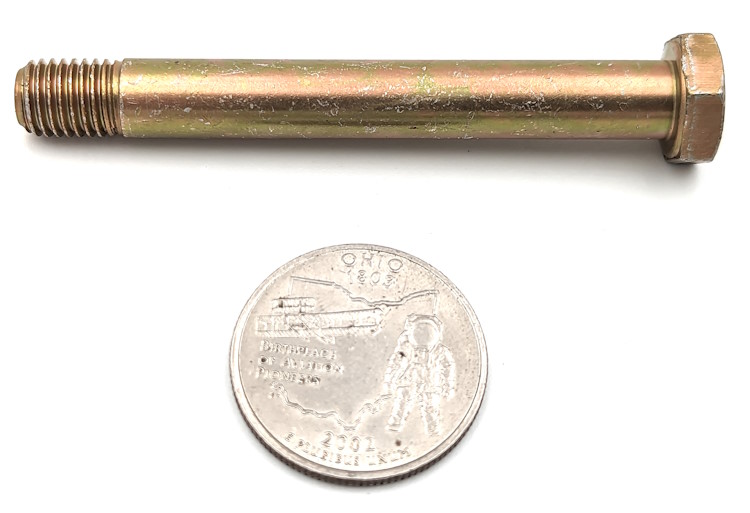

NAS464P5LA34

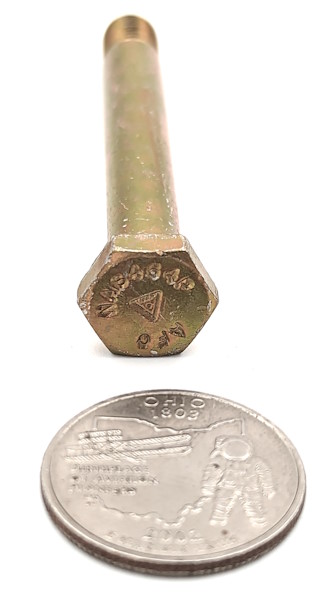

NAS464P5LA34
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
