AN310-10 | Nut, Castellated

INVENTORY
Part Number AN310-10
NSN Number 5310-00-167-1291
Stock 0*
Packaged Amount INQUIRE
REF PC Weight (LB) 0.095
*Alternate PN(s) Relation
AN355-10 Canceled
×

OUT OF STOCK
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
NUT FEATURES
Hex Nut, Castellated
MAX. HEIGHT (MAX)
0.672
MAX. HEIGHT (MIN)
0.640
MAX. BEARING SURFACE DIAMETER
1.002
MIN. BEARING SURFACE DIAMETER
0.986
THREAD SPECIFICATIONS
.6250-18 UNF-3B
MAX. FLATS WIDTH
1.002
MIN. FLATS WIDTH
0.986
MATERIAL
Steel
MIN. AXIAL STRENGTH
30100 LBF
FINISH
CADMIUM PLATING PER AMS-QQ-P-416, TYPE II, CLASS 2
LOCKING MECHANISM
Castellated
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN310 REV. 10 (for latest print see NASM310)
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

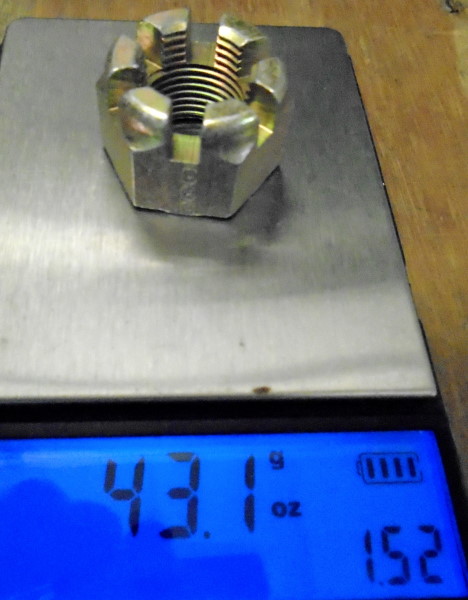

AN310-10

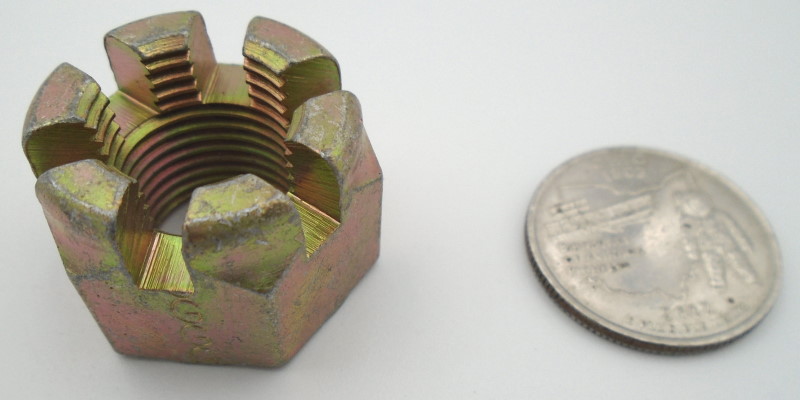

AN310-10
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
