AN178C21A | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN178C21A
NSN Number 5306-01-665-3606
Stock 371
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount 1 PER
REF PC Weight (LB) 0.152
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.740
MAX. HEAD THICKNESS
0.297
MIN. HEAD THICKNESS
0.265
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.4991
MIN. BODY DIAMETER
0.4986
NOMINAL GRIP LENGTH
1.438
MAX. GRIP LENGTH
1.454
MIN. GRIP LENGTH
1.422
NOMINAL LENGTH
2.219
MAX. LENGTH
2.250
MIN. LENGTH
2.203
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.5000-20 UNF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

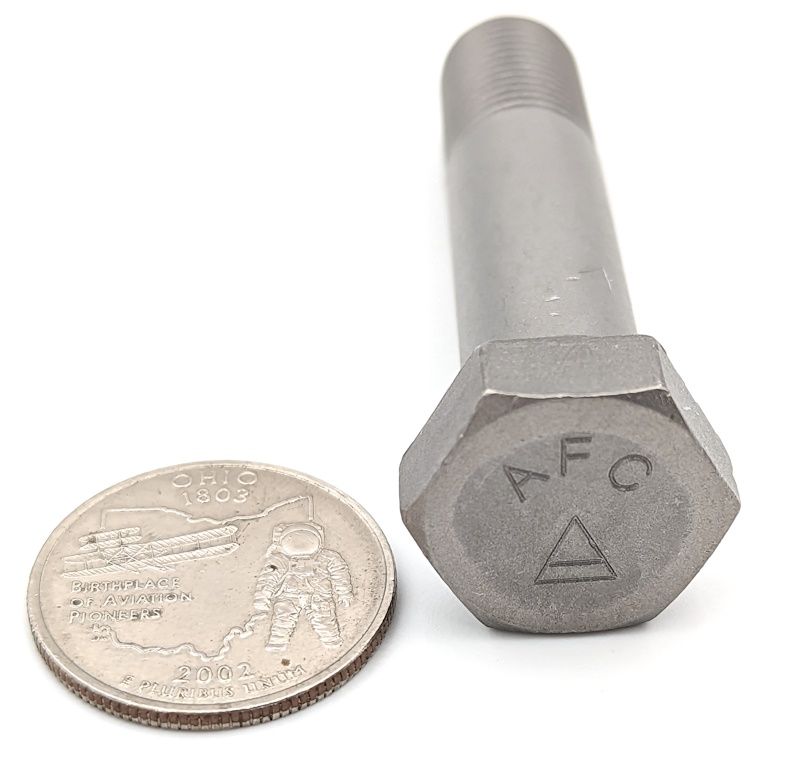

AN178C21A

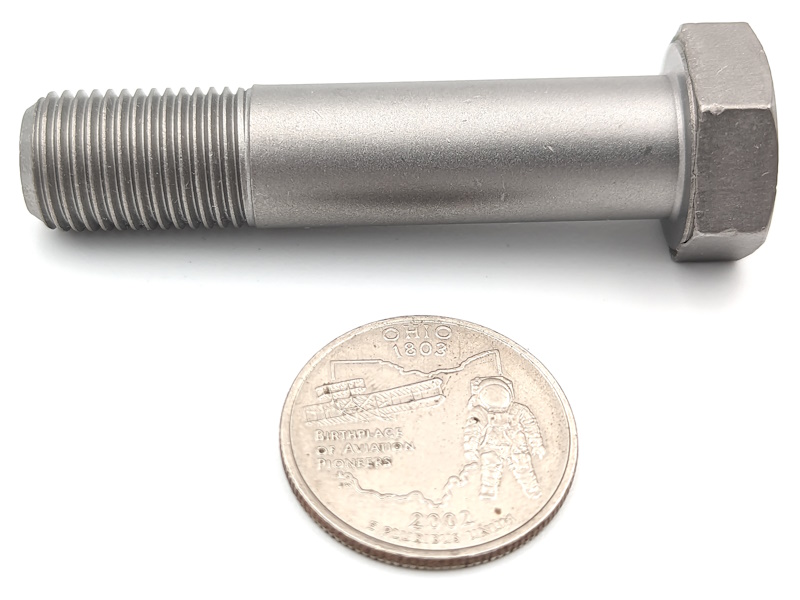

AN178C21A

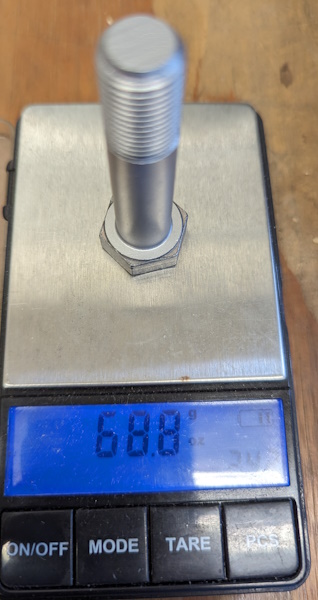

AN178C21A
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
