AN178C15 | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN178C15
Stock 316
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.125
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.740
MAX. HEAD THICKNESS
0.297
MIN. HEAD THICKNESS
0.265
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.4991
MIN. BODY DIAMETER
0.4986
NOMINAL GRIP LENGTH
0.938
MAX. GRIP LENGTH
0.954
MIN. GRIP LENGTH
0.922
NOMINAL LENGTH
1.719
MAX. LENGTH
1.750
MIN. LENGTH
1.703
NOMINAL HOLE DIAMETER (SHANK)
0.106
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.5000-20 UNF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

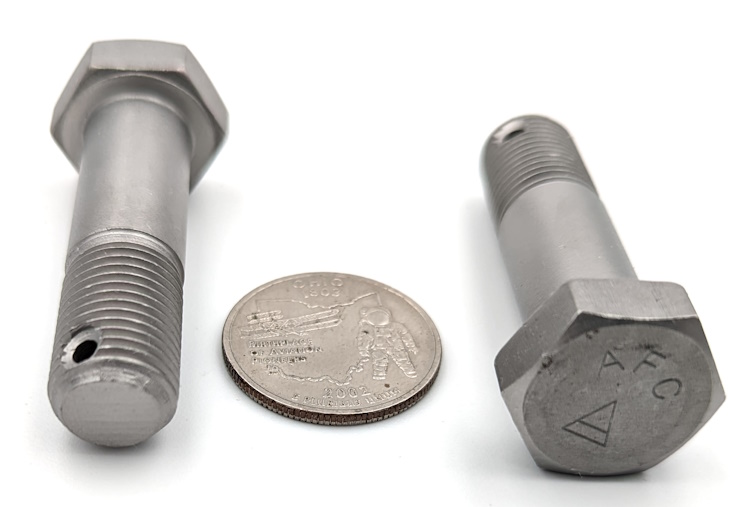

AN178C15

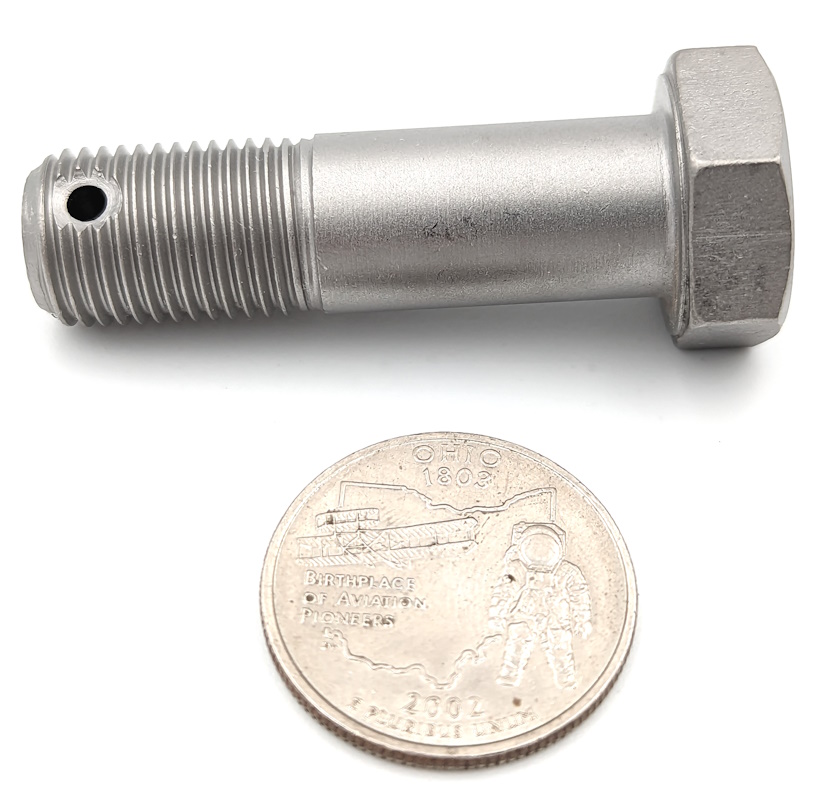

AN178C15

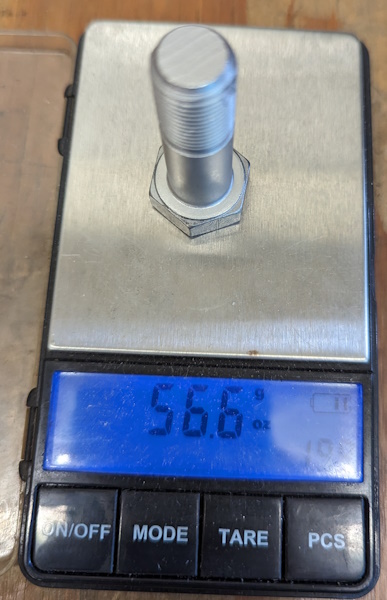

AN178C15

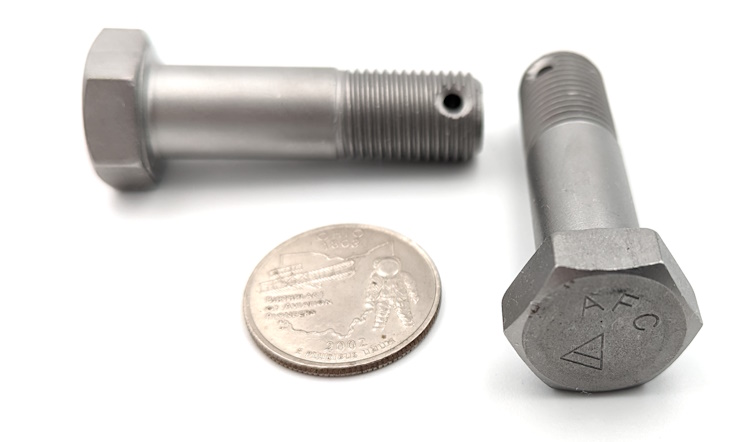

AN178C15

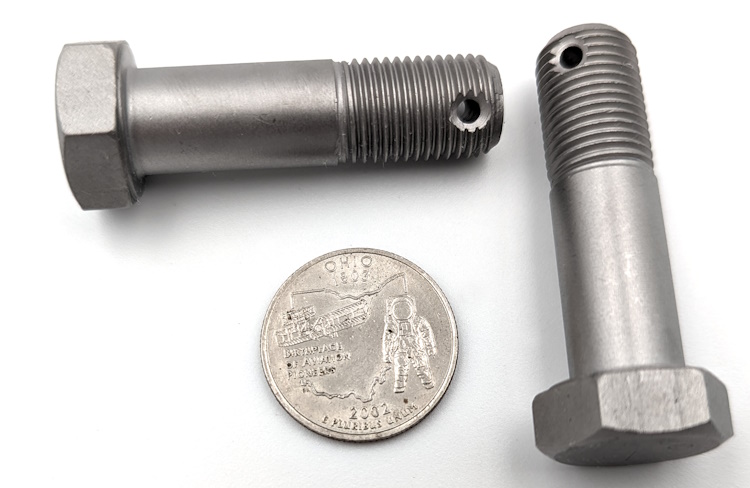

AN178C15
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
