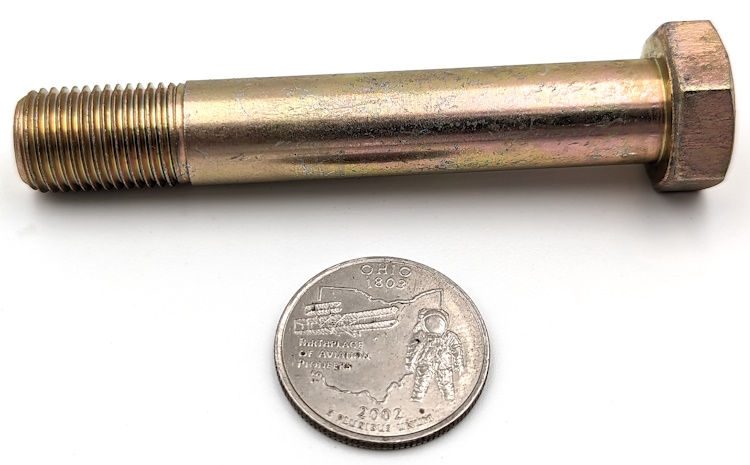

AN178-27A | Close Tolerance Aircraft Bolts
| INVENTORY |
| Part Number |
AN178-27A |
| Stock |
0 |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.197 |
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.740
MAX. HEAD THICKNESS
0.297
MIN. HEAD THICKNESS
0.265
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.4991
MIN. BODY DIAMETER
0.4986
NOMINAL GRIP LENGTH
2.188
GRADE
G40370, G86300, G87400, G41400, G86300,G87350, OR G41300
METALLURGICAL HARDNESS
HRC 26-32
FINISH
CADMIUM PLATED PER QQ-P-416, TYPE II, CLASS 3
THREAD SPECS
.5000-20 UNF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
