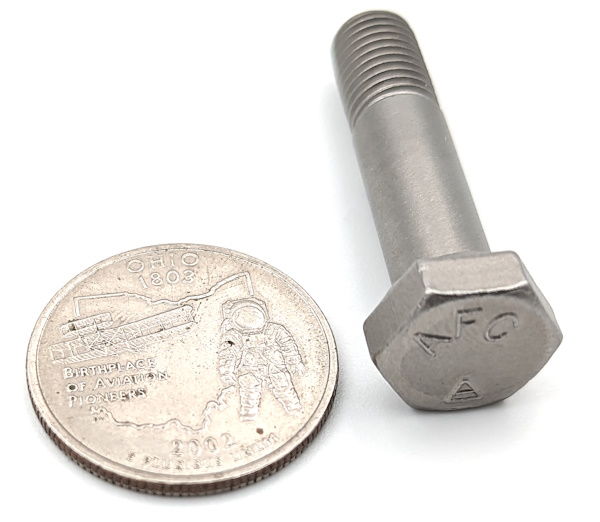

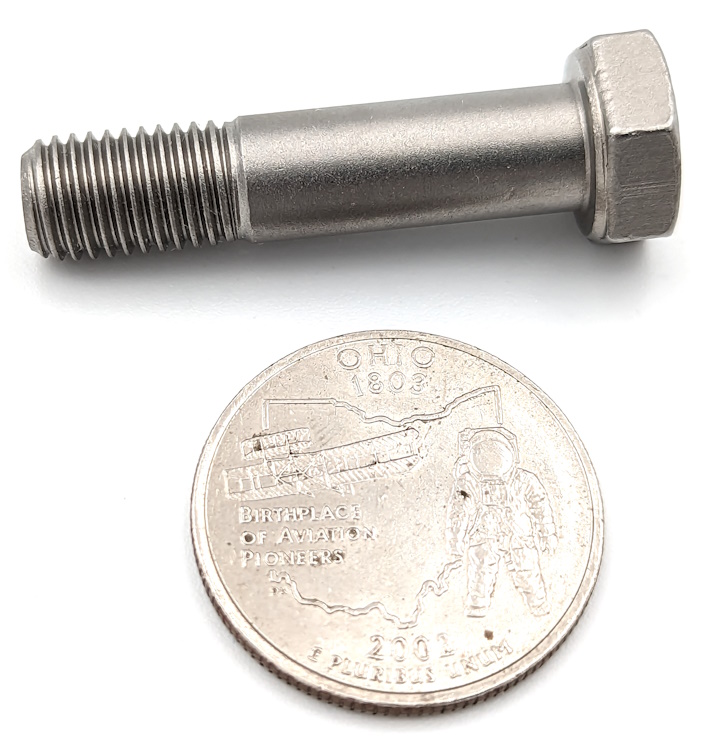

AN175C12A | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN175C12A
Stock 23
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE

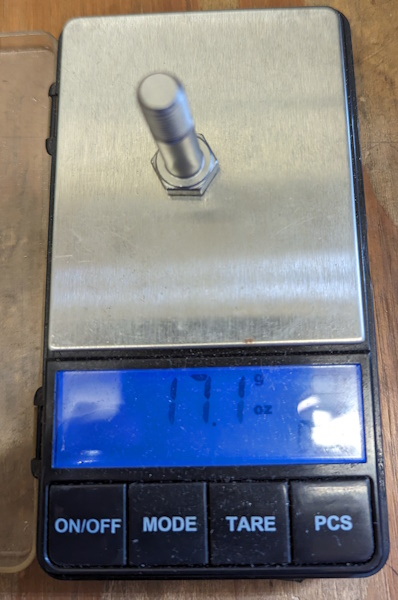

REF PC Weight (LB) 0.038
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.490
MAX. HEAD THICKNESS
0.204
MIN. HEAD THICKNESS
0.172
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3117
MIN. BODY DIAMETER
0.3112
NOMINAL GRIP LENGTH
0.812
MAX. GRIP LENGTH
0.828
MIN. GRIP LENGTH
0.796
NOMINAL LENGTH
1.344
MAX. LENGTH
1.375
MIN. LENGTH
1.328
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.3125-24 UNF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
