AN173-6A | Close Tolerance Aircraft Bolts
| INVENTORY |
| Part Number |
AN173-6A |
| NSN Number |
5306-01-501-5640 |
| Stock |
49,737 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.0094 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
Government procurement commonly mistakes P/N AN173-6A and AN17-36A. See specifications below for the correct P/N.
MAX. FLATS WIDTH (HEAD)
0.377
MIN. FLATS WIDTH (HEAD)
0.365
MAX. HEAD THICKNESS
0.141
MIN. HEAD THICKNESS
0.109
MIN. WASHER FACE DIAMETER
0.335
MAX. BODY DIAMETER
0.1894
MIN. BODY DIAMETER
0.1889
NOMINAL GRIP LENGTH
0.375
GRADE
G40370, G86300, G87400, G41400, G86300,G87350, OR G41300
METALLURGICAL HARDNESS
HRC 26-32
FINISH
CADMIUM PLATED PER QQ-P-416, TYPE II, CLASS 3
THREAD SPECS
.1900-32 NF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

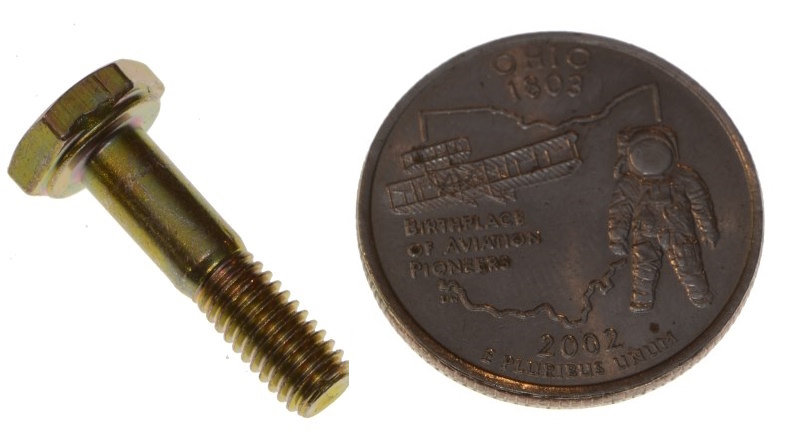

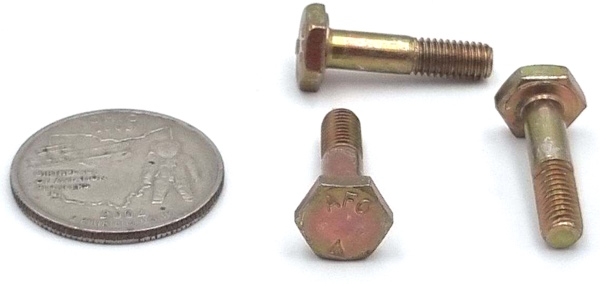

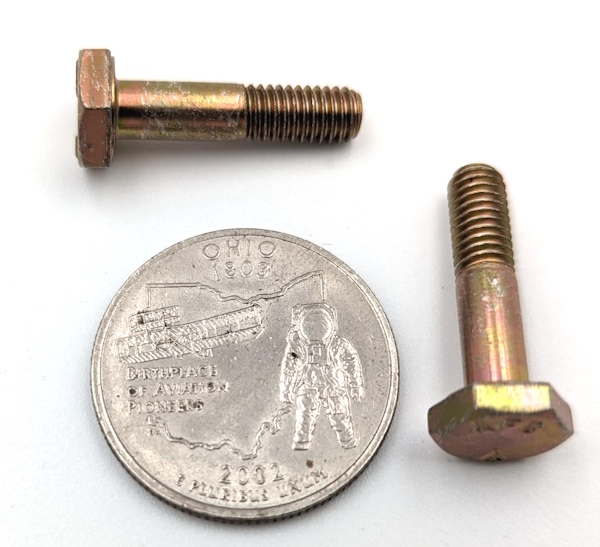

AN173-6A by an American Quarter
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
