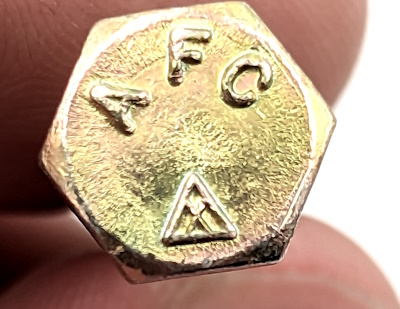

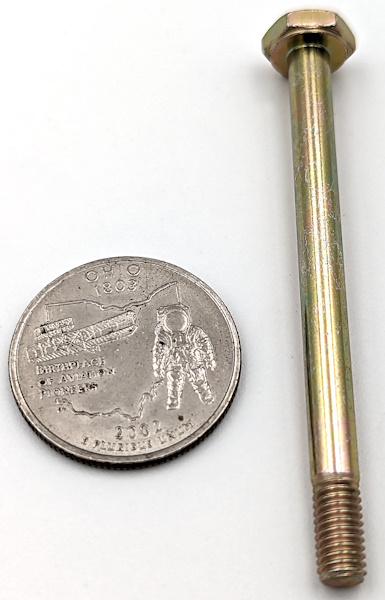

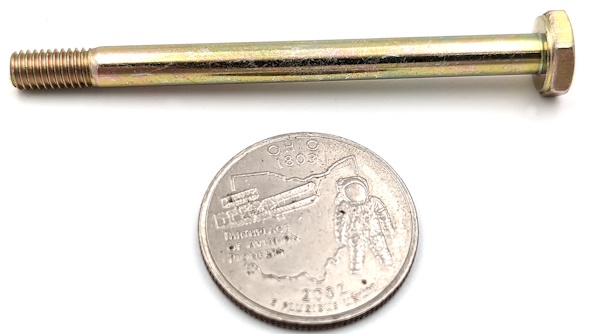

AN173-23A | Close Tolerance Aircraft Bolts
| INVENTORY |
| Part Number |
AN173-23A |
| Stock |
5,396 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| Carton Quantity |
1,000 PER |
| REF PC Weight (LB) |
0.022 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.377
MIN. FLATS WIDTH (HEAD)
0.365
MAX. HEAD THICKNESS
0.141
MIN. HEAD THICKNESS
0.109
MIN. WASHER FACE DIAMETER
0.335
MAX. BODY DIAMETER
0.1894
MIN. BODY DIAMETER
0.1889
NOMINAL GRIP LENGTH
2.000
GRADE
G40370, G86300, G87400, G41400, G86300,G87350, OR G41300
METALLURGICAL HARDNESS
HRC 26-32
FINISH
CADMIUM PLATED PER QQ-P-416, TYPE II, CLASS 3
THREAD SPECS
.1900-32 NF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
